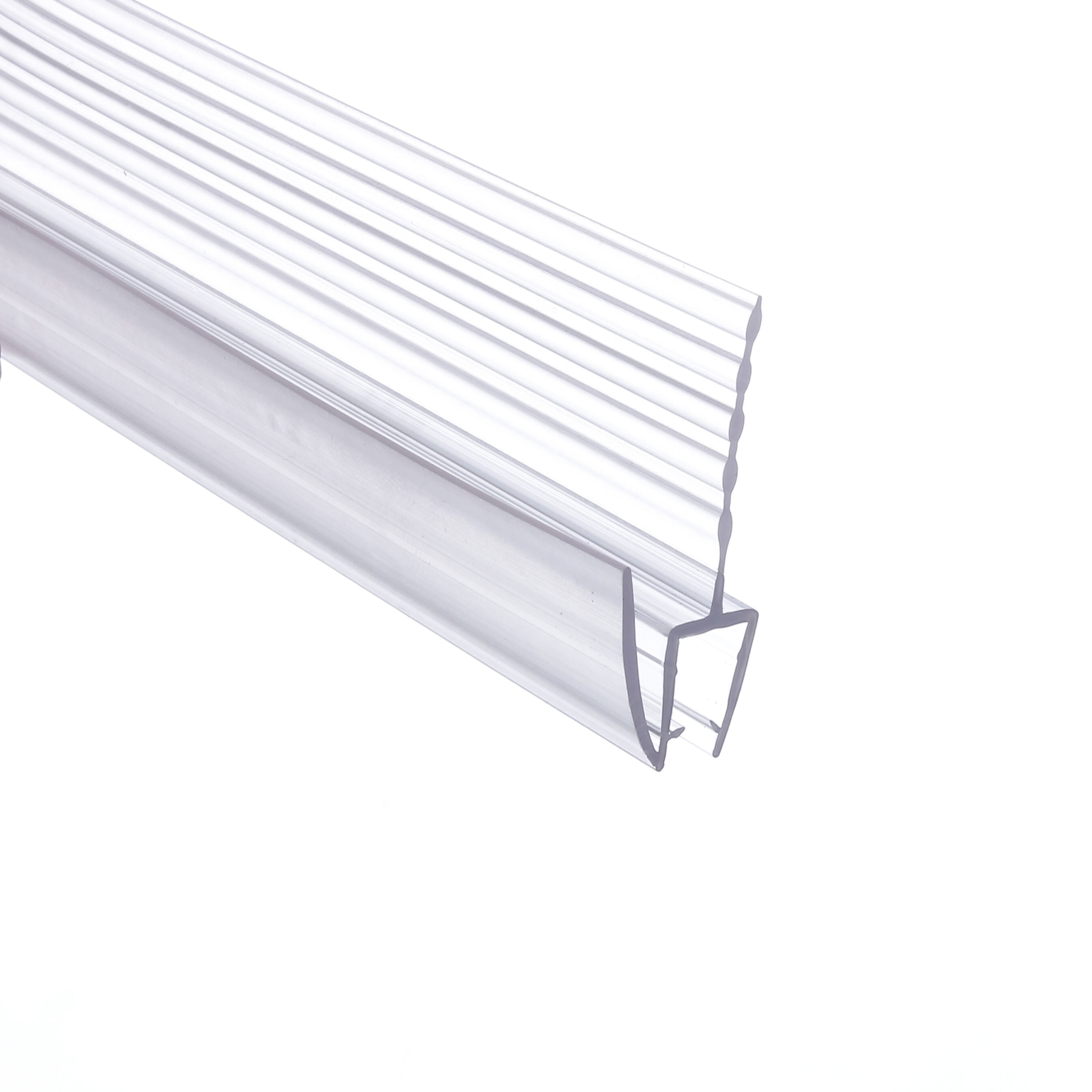

Most frameless shower enclosures depend on about three main parts for keeping water where it belongs. The bottom part is usually some kind of flexible vinyl or silicone material that sits right between the door and the actual shower tray, creating this watertight seal. Then there are those side seals which press against whatever wall or panel they're next to when someone closes the door. Magnetic strips have become pretty popular too in these frameless setups because they really help keep everything contained. These magnets actually create around 30 percent more pressure when closing than regular old seals do according to industry standards from recent years. When all these pieces work together properly, they manage to send nearly all the water back down into the shower basin instead of letting it escape everywhere else.
Most door sweeps hang down about 1 to 2 centimeters beneath the shower door, filling those annoying gaps where water tends to escape between the moving door and fixed parts of the enclosure. The better quality ones usually come with either silicone flanges or those brush-like fibers that really make a difference. Some tests show these can cut down on wet floors by around three quarters in sliding door showers, though Sunny Shower USA did some research on this topic. Installation is pretty straightforward too since most good models snap right into place without needing messy glue that leaves behind residue later. And the nylon backing stays firm for several years even with regular use, so they don't droop like cheaper alternatives tend to do after just a couple of months.
For pivot style doors, we generally need those continuous perimeter seals compressed between 6 and 8 millimeters. Sliding doors work better with a different approach though they often use two parts together fixed side gaskets plus those moving sweep seals along the bottom. When it comes to glass thickness ranging from 6 to 10 mm, getting the right size seal channels matters a lot. If the seals are too small, there will be gaps around 0.5 to 1 mm where air leaks through. But go too big and the door just won't operate properly. The hardness of the seal material is another consideration. Most people find Shore A ratings between 40 and 60 work well, but heavier tempered glass panels definitely need something firmer to hold up over time without losing their effectiveness.
There are various types of shower door seals available including bottom seals, side seals, magnetic strips, and door sweeps. Their primary function is to keep water contained within the shower area.
Shower door sweeps hang down beneath the shower door to fill gaps that can allow water to escape. They help significantly in reducing wet floors by sealing these gaps effectively.
Silicone is preferred over rubber in bathroom environments due to its superior resistance to moisture absorption and mold growth, along with its longer lifespan and better elasticity under humid conditions.
Common mistakes include over-compression of gaskets, insufficient cure time for sealants, and using mismatched adhesives which can compromise the integrity and waterproofing performance of shower seals.
Regular cleaning using gentle soap and inspections can help maintain door seals. Disinfecting with vinegar solution and ensuring proper drying of the seals can prevent mold growth.
